Polypropylene Pumps

Dry Run Resistor

  • Anala Acid Transfer pumps are fitted with dry-run-resistor which lubricates mechanical seal for a limited period (maximum 20-30 minutes), in the event of pump running without liquid in the pump casing the mechanical seal will not fail. (Dry run).

  • The major problem encountered in handling corrosive liquids is dry-run of the pump which damage mechanical seal necessitating expensive replacement. Many customers who are frustrated with this problem are relieved of it, with this simple innovative mechanism and are highly appreciative of this feature.

  • In addition, we also supply pumps with reliable mechanical seal with certain inner components of the seal in Hastelloy C material. This adds to higher reliability of our Polypropylene Pumps and are liked and appreciated by all customers.

  • Another salient feature of Anala Polypropylene Pumps is that the casing in volute type and the impellers are semi-open type. These facilitate handling of effluent type, and thick liquids.

  • Anala Polypropylene Pumps are available in both Monoblock and coupled versions.

  • Anala Industrial Chemical pumps are versatile and used in effluent transfer application where the effluent is corrosive in nature.

  • Anala pumps are small Acid pumps and handle highly corrosive chemicals.

Application : Corrosive liquids like 1. HCL 33%, H2So4, Alkali base liquid 2. Acid & corrosive effluent 3. Acid & Alkali unloading application, etc.

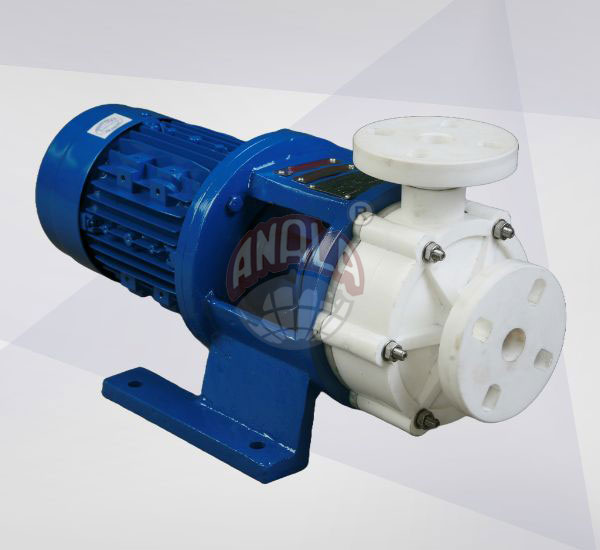

MONOBLOCK POLYPROPYLENE PUMP - ANALAPUMPS

MONOBLOCK POLYPROPYLENE PUMP

Pump available to handle corrosive liquid.

Capacity : 500 lph to 50000 lph     Total Head : 25M

Type : Stub shaft     Duty : Continuous

Temp : Max. 70 Deg.C.     Impeller type : Semi-open

Mech. Seal : Hastelloy C and SS 316 spring loaded mech. Seal with Sic vs Sic Face combination

Special feature : Can be fitted with any standard motor.

Special Arrangement : Dry Run Resistor     Sleeves : Hastelloy “C”

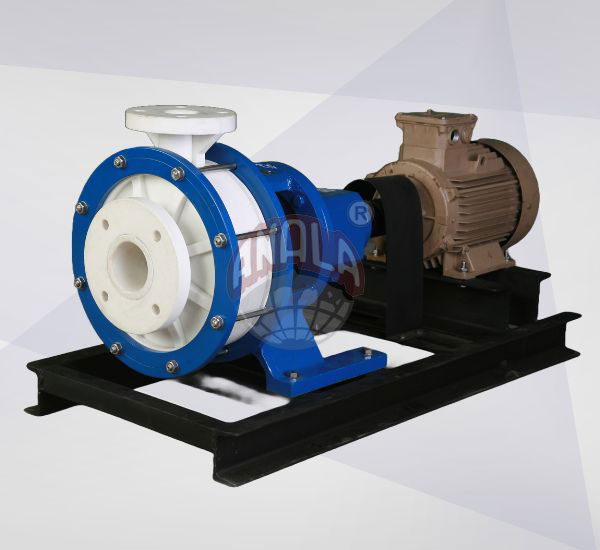

COUPLED POLYPROPYLENE PUMP - ANALAPUMPS

COUPLED POLYPROPYLENE PUMP

Pump available to handle corrosive liquid.

Capacity : 500 lph to 100000 lph     Total Head : 50M

Type : Coupled type     Duty : Continuous

Temp : Max. 70 Deg.C.     Impeller type : Semi-open

Mech. Seal : Hastelloy C and SS 316 spring loaded mech. Seal with Sic vs Sic Face combination

Special Arrangement : Dry Run Resistor

Sleeves : Hastelloy “C”

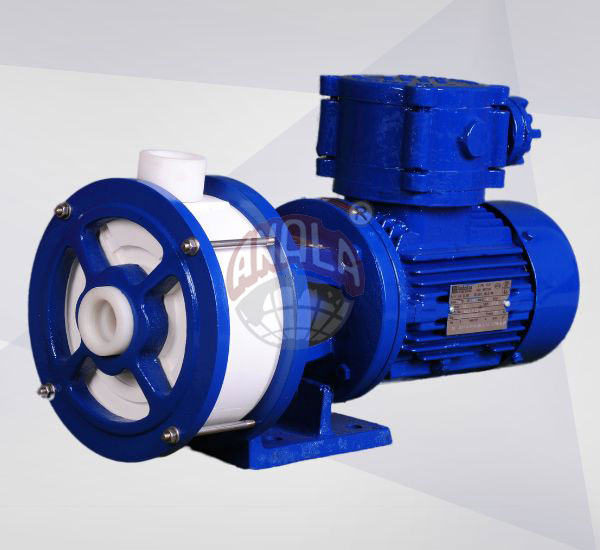

MONOBLOCK POLYPROPYLENE PUMP WITH FLAME PROOF MOTOR - ANALAPUMPS

MONOBLOCK POLYPROPYLENE PUMP WITH FLAME PROOF MOTOR

Pump available to handle corrosive liquid.     Type : Stub shaft

Capacity : 500 lph to 50000 lph     Total Head : 25M     Duty : Continuous

Temp : Max. 70 Deg.C.     Impeller type : Semi-open

Mech. Seal : Hastelloy C and SS 316 spring loaded mech. Seal with Sic vs Sic Face combination

Special feature : Can be fitted with any standard motor.

Motor : Crompton/ Bharath Bijilee.     Sleeves : Hastelloy “C”

Special Arrangement : Dry Run Resistor

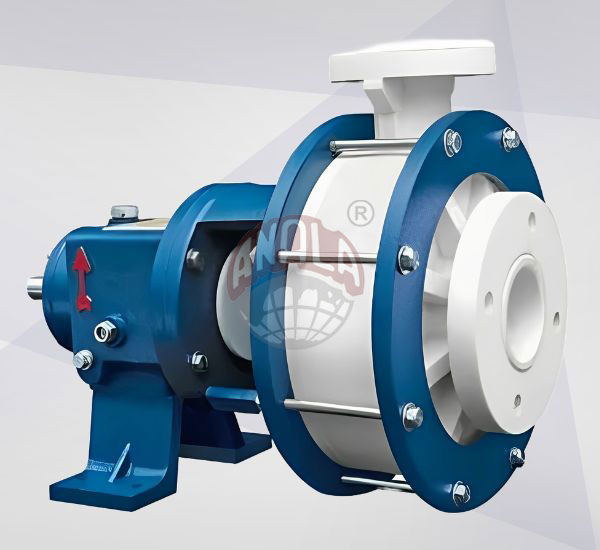

COUPLED TEFLON/PVDF PUMP - ANALAPUMPS

COUPLED TEFLON/PVDF PUMP

Pump available to handle corrosive liquid.

Type : Stub-shaft and coupled types

Capacity : 500 lph to 100000 lph

Total Head : 25M

Duty : Continuous

Temp : Max. 70 Deg.C.     Impeller type : Semi-open

Mech. Seal : Hastelloy C and SS 316 spring loaded mech. Seal with Sic vs Sic Face combination
